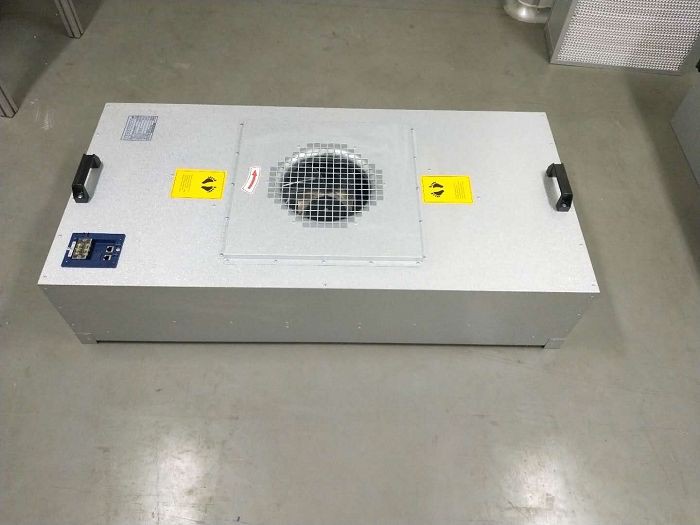

When the DC FFU fan filter unit is started, its starting current is only 1/5 of that of the AC FFU fan filter unit. Therefore, when the same current is used, multiple DC FFU fan filter units can be started at the same time.
Features
• The DC FFU fan filter unit has very low power consumption, which can achieve the purpose of energy saving, thus saving electricity and money for enterprises;
• DC FFU fan filter unit adopts intelligent computer control system, which can achieve perfect matching of mechanical components and electronic control system.
• During operation, the heat generated by the DC FFU fan filter unit is very small, which is relatively more conducive to lowering the room temperature in the working area.
Application
Suitable for use in clean rooms with cleanliness levels of Class 1-1000
Our Certificates
As a professional cleaning equipment manufacturer, we are fully aware of the importance of products. We invest a lot of manpower and material resources in product research and development and upgrading every year.
|
Name |
ECFU-2*2 |
ECFU-2*4 |
ECFU-4*4 |
|
Dimension W*D*H(mm) |
575*575*207 |
575*1175*207 |
1175*1175*280 |
|
Filter size W*D*H(mm) |
570*570*70 |
570*1170*70 |
1170*1170*70 |
|
Air volume(m³/h) |
520 |
1080 |
2000 |
|
Wind speed |
0.45m/s±20% |
||
|
Noise dB(A) |
≤54dB(A) |
≤54dB(A) |
≤58dB(A) |
|
Material |
Galvanized steel plate, painted steel plate, aluminum plate, stainless steel |
||
|
Motor |
Domestic motor-imported motor (optional) |
||
|
Power Supply AC-1-220V-50HZ |
90W |
90W |
150W |
|
Filtration efficiency |
H13-U16 (HEPA 99.99%0.3µm -99.99990.12µm) |
||
|
Overload protection |
Motor Controller Double Overload Protection Switch |
||
|
Wiring method |
Terminal block or Male and female connector or Power cord |
||
|
Weight(KG) |
30 terminal |
38 |
58 |
